I have been working in this project with 5 colleagues we have done in our thesis a light rescue vehicle for urban areas with high vehicular traffic
At the beginning we start with all the sketches to choose one of the models / empezamos seleccionando las alternativas que teniamos en cuanto a diseño en los dibujos realizados.
Scale models and some sketches / Modelos a escalas y algunos diseños.
Volumetric model / Modelo volumetrico.
We created 1:1 plastic structure to check all the dimensions / Se creo un modelo plastico escala 1:1 para verificar las dimensiones.
We started with the base and the main welds / Empezamos creando la base y las soldaduras principales.

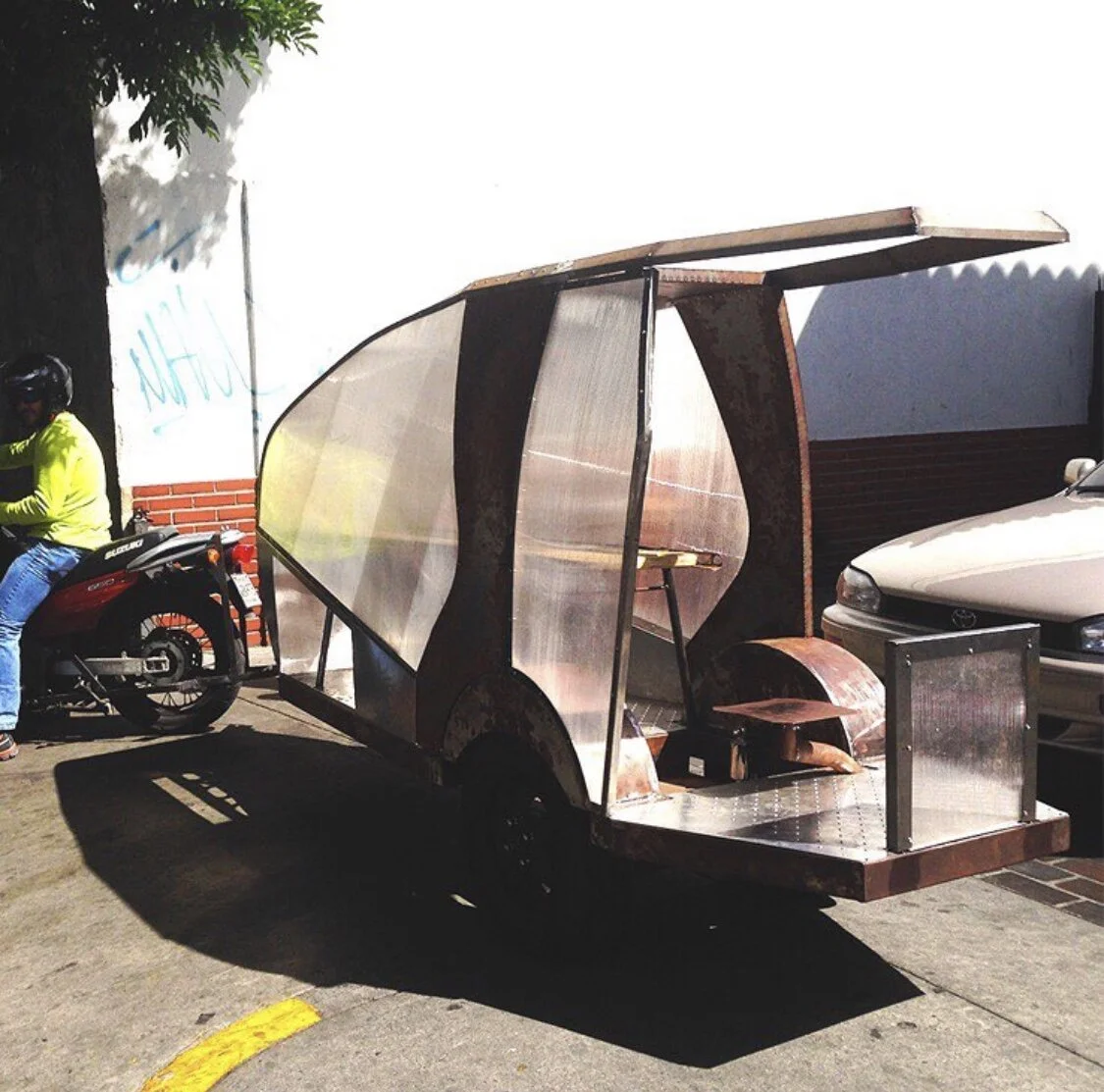

We tested the vehicle before painting and finishing touches / Porbamos el vehiculo antes de llevarlo al area de pintura y toques finales.
We elaborated the design from the drawing to become it to reality / Elaboramos el diseño desde un dibujo para convertirlo en realidad.
The vehicle has modern features as strecher rails system the size among others that produce really effective solutions in the practice / Con caracteristicas muy modernas como unos rieles para la camilla queue producen soluciones muy efectivas para las practicas.
3D exploded parts / despiece 3D

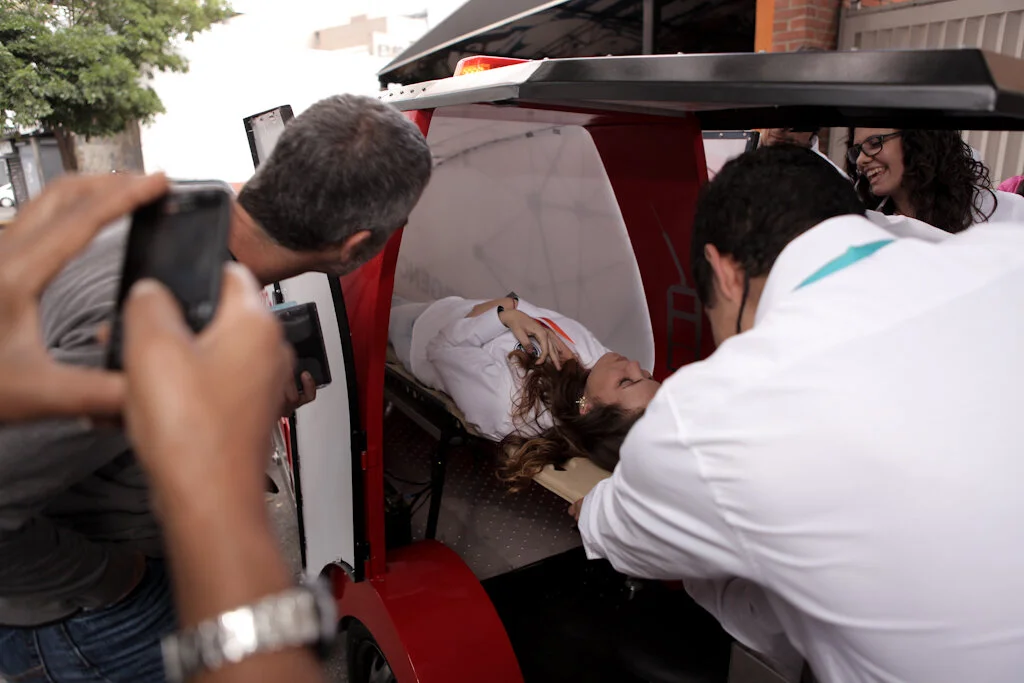

Large interior space to be able to take care of the patient / Gran espacio interior para atender al paciente.
The objective of the vehicle is a fast and save transfer of an injured person from the scene of the accident to the nearest health centre. Accompanied by the paramedic who can provide the necessary service during their transfer / El objetivo de este vehiculo es transporter personas desde el lugar del accident al centro de ateción más cercano junto con un paramedico para asistirlo.
We included lights in the vehicle to see what is happening with the patient / Incluimos luces en la cabina para atender al paciente de ser posible.
The team / El grupo
We have worked in alliance whit city fire marshal department to hear from them all the requirements that they have at the time to safe lives in the motorways / Trabajamos en alianza con los bomberos de la ciudad para escuchar las necesidades que ellos tienen a la hora de asistir un accidente.
We took the vehicle to the street to show all the process to the fire marshal / Pusimos en marcha el vehiculo para probarlo junto a los bomberos.
We worked with the fire marshal colors to be u¡in harmony with them / Utilizamos la paleta de colores del cuerpo de bomberos para mantenernos en armonia con ellos.
